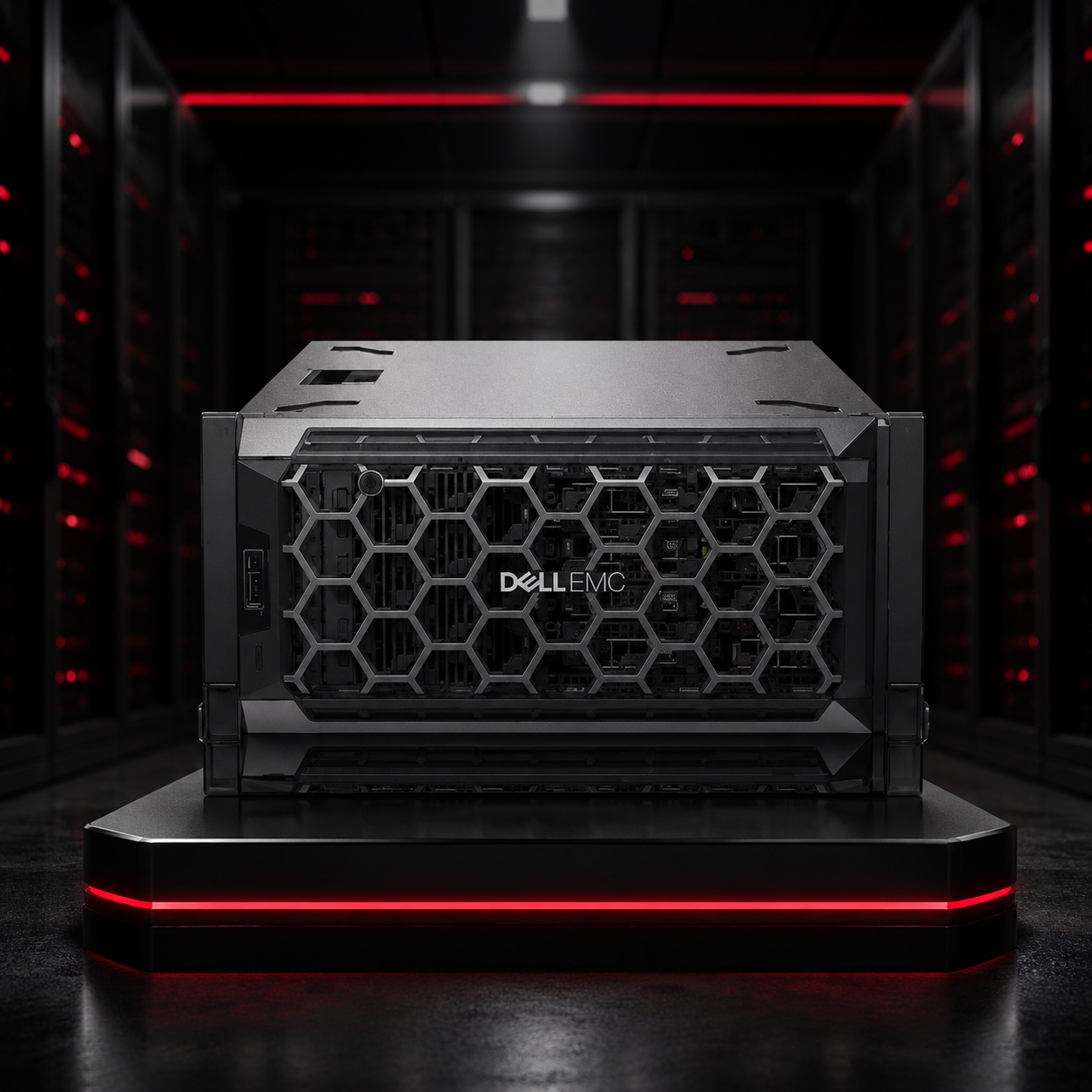

The Dell PowerEdge T440 Tower Server is a flexible tower server platform designed to support scalable processing, memory, storage, system management, and security capabilities. It can be configured as either a tower or rack server and supports dual Intel Xeon Scalable processors, expandable storage, and multiple management technologies.
Processor
The Dell PowerEdge T440 supports:
- Up to two 2nd Generation Intel® Xeon® Scalable processors.
- Up to 16 cores per processor.
Memory
The PowerEdge T440 provides expandable DDR4 memory capabilities.
- 16 DDR4 DIMM slots.
- Supports RDIMM and LRDIMM memory.
- Memory speeds of up to 2666 MT/s.
- Maximum memory capacity of up to 1 TB.
- Supports registered ECC DDR4 DIMMs only.
Storage Controllers
The Dell PowerEdge T440 supports multiple internal and external storage controller options.
Internal Controllers
- PERC H330
- PERC H730P
- PERC H740P
- HBA330
- Software RAID S140
Boot Optimized Storage Subsystem
The server supports hardware RAID with two M.2 SSDs in the following capacities:
- 120 GB
- 240 GB
External RAID Controller
- PERC H840
External HBA
- 12 Gbps SAS HBA

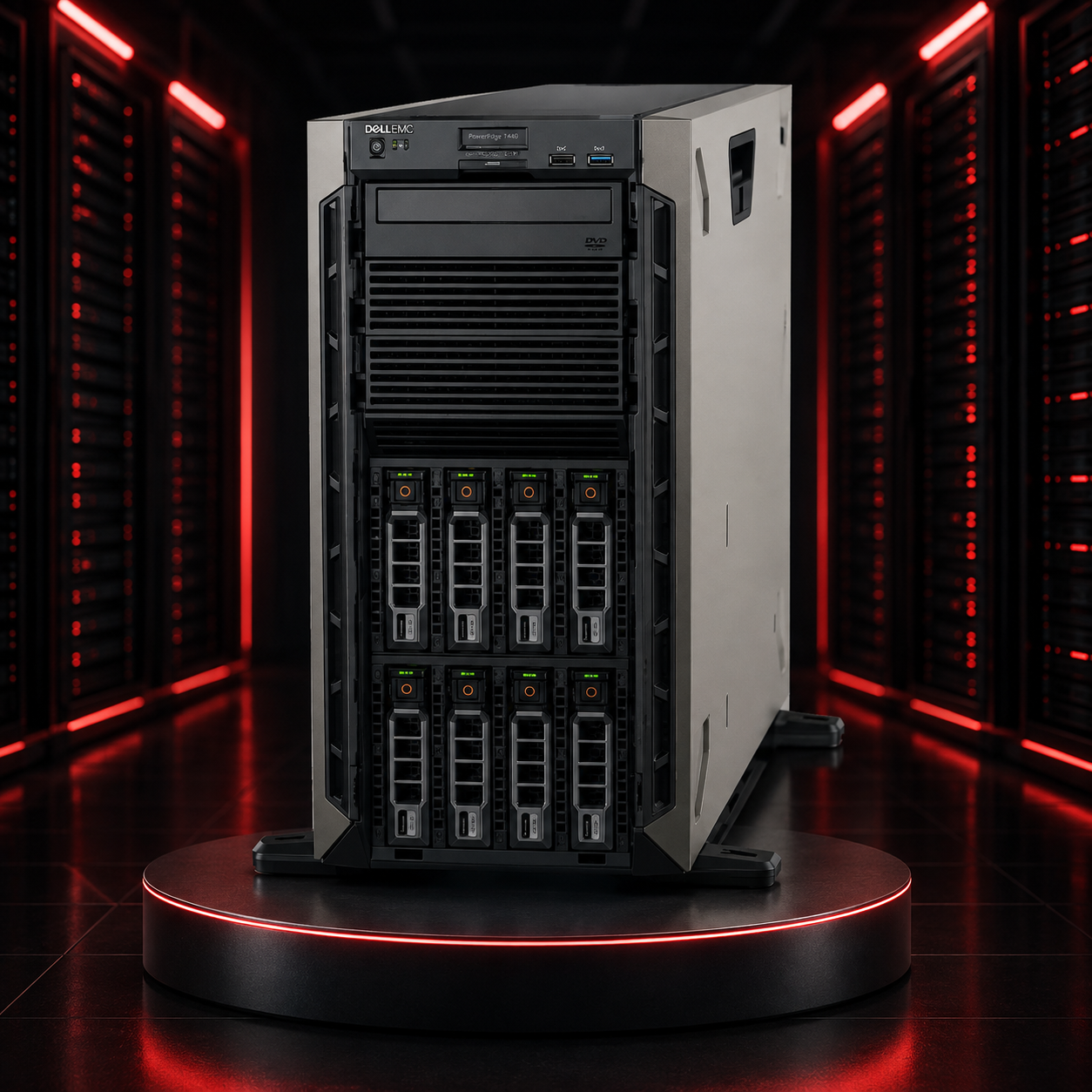

Drive Bays
The Dell PowerEdge T440 provides multiple storage configurations.
Available options include:
- Up to 8 x 3.5-inch SAS/SATA HDD or SSD drives with a maximum capacity of up to 128 TB.
- Up to 16 x 2.5-inch SAS/SATA HDD or SSD drives with a maximum capacity of up to 61 TB.
Power Supplies
The PowerEdge T440 supports several power supply configurations:
- 495 W hot-plug power supply
- 750 W hot-plug power supply
- 1100 W hot-plug power supply
These hot-plug power supplies provide Gold efficiency.
The server also supports:
- 450 W cabled AC power supply
Cooling
The PowerEdge T440 supports:
- Up to 2 system fans.
Form Factor
The Dell PowerEdge T440 can be configured as:
- Tower server
- Rack server
The system uses a 5U form factor.
Maximum Chassis Depth
- 594.82 mm
Bezel
The server supports:
- Optional security bezel.
Embedded and At-Server Management
The Dell PowerEdge T440 includes embedded management capabilities such as:
- iDRAC9
- iDRAC Direct
Management Consoles and Mobile
Supported Dell OpenManage management solutions include:
- OpenManage Enterprise
- OpenManage Power Manager
- OpenManage Mobile
OpenManage Integrations
The server supports integration with several management platforms, including:
- Microsoft® System Center
- VMware® vCenter™
- BMC Software
OpenManage Connections
Supported connections include:
- Nagios
- Nagios XI
- HP Operations Manager i (OMi)
Management Tools
The Dell PowerEdge T440 supports a range of management and update tools, including:
- Dell EMC Repository Manager
- Dell EMC Update Package
- Dell EMC System Update
- Dell EMC Server Update Utility
- iDRAC Service Module
- iDRAC REST API with Redfish
- OpenManage Server Administrator
- OpenManage Storage Services
Security
The PowerEdge T440 includes several security capabilities designed to help protect the server environment.
Available security features include:
- Optional TPM 1.2/2.0
- Cryptographically signed firmware
- Silicon Root of Trust
- Secure Boot
- System Lockdown with iDRAC Enterprise or Datacenter
- System Erase

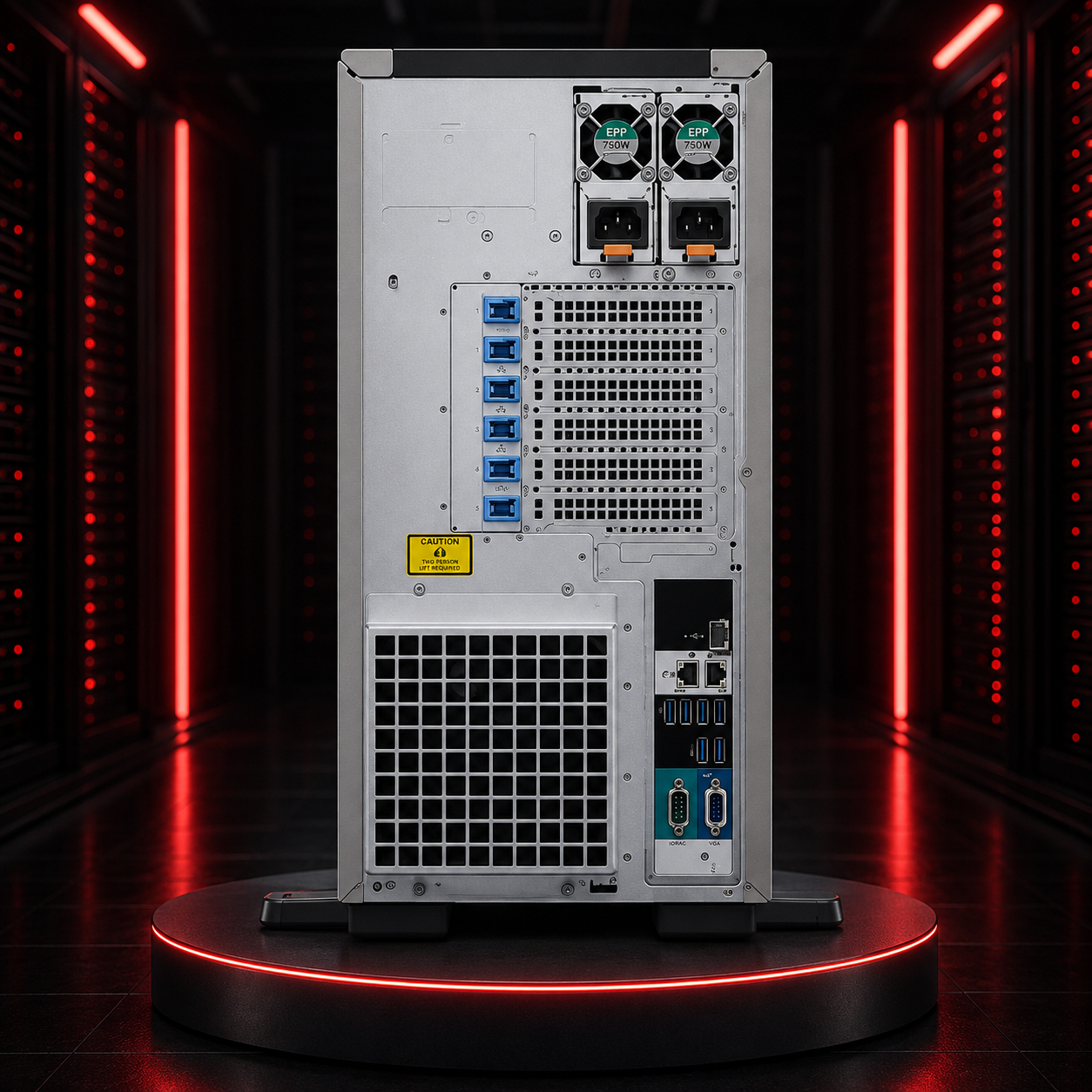

Network and I/O Ports
The Dell PowerEdge T440 includes:
- 2 x 1 GbE LOM ports
- 1 x dedicated iDRAC port
- 9 x USB ports
- 1 x VGA video port
- 1 x serial port
USB Ports
The USB configuration includes:
- 5 x USB 2.0 ports
- 4 x USB 3.0 ports
- 1 internal USB port included within the overall USB configuration
PCIe Expansion
The PowerEdge T440 supports:
- Up to 5 PCIe Gen3 expansion slots.
GPU Options
Available GPU options include:
- 1 x NVIDIA NVS 310
- 1 x NVIDIA Quadro P4000
