The Dell PowerEdge T150 Tower Server + Windows Server 2022 offers a compact tower-based server platform with flexible processing, memory, storage, management, and security capabilities. The system supports Intel Xeon E-2300 Series and Intel Pentium processors, along with multiple operating systems and virtualization platforms.

Processor

The Dell PowerEdge T150 supports one processor with the following options:

• Intel® Xeon® E-2300 Series processor with up to 8 cores.
• Intel® Pentium® processor with up to 2 cores.

Memory

The PowerEdge T150 provides four DDR4 DIMM slots and supports UDIMM memory configurations.

• Maximum memory capacity: Up to 128 GB.
• Memory speed: Up to 3200 MT/s.
• Supports unregistered ECC DDR4 DIMMs only.
• When using an Intel Pentium processor, the maximum supported memory speed is 2666 MT/s.

Storage Controllers

The PowerEdge T150 provides several storage controller options to support different system configurations.

Internal Controllers

• PERC H755
• PERC H345
• HBA355i
• S150

Internal Boot

Internal boot options include:

• USB
• Boot Optimized Storage Subsystem (BOSS-S1)
• Hardware RAID with 2 x M.2 SSDs

External HBA

• HBA355e non-RAID external HBA

Drive Bays and Storage Capacity

The server supports:

• 4 x 3.5-inch cabled SAS/SATA HDD or SSD drives.
• Maximum storage capacity of up to 30.72 TB.

Power Supplies

The Dell PowerEdge T150 supports the following cabled power supply options:

• 300 W Bronze, 100–240 VAC
• 400 W Platinum, 100–240 VAC

The 400 W Platinum power supply option was available from December 2021.

Cooling

The system includes:

• One cabled fan.

Dimensions and Form Factor

The Dell PowerEdge T150 is designed as a compact 4U mini tower server.

Its dimensions are:

• Height: 360 mm (14.17 inches)
• Width: 175 mm (6.88 inches)
• Depth: 453.75 mm (17.86 inches) with bezel

Embedded Management

The PowerEdge T150 includes Dell management technologies that help simplify system administration and monitoring.

Supported embedded management options include:

• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module

OpenManage Software

The server supports Dell OpenManage software and plugins, including:

• OpenManage Enterprise
• OpenManage Power Manager Plugin
• OpenManage SupportAssist Plugin
• OpenManage Update Manager Plugin
• OpenManage Mobile

Integrations and Connections

The PowerEdge T150 supports integration with several management platforms and tools, including:

• BMC Truesight
• Microsoft System Center
• Red Hat Ansible Modules
• VMware vCenter
• VMware vRealize Operations Manager
• IBM Tivoli Netcool/OMNIbus
• IBM Tivoli Network Manager IP Edition
• Micro Focus Operations Manager
• Nagios Core
• Nagios XI

Security

The Dell PowerEdge T150 includes multiple security features designed to help protect the server environment.

These features include:

• Cryptographically signed firmware
• Secure Boot
• Secure Erase
• Silicon Root of Trust
• System Lockdown with iDRAC9 Enterprise or Datacenter
• TPM 1.2/2.0 FIPS
• CC-TCG certification
• TPM 2.0 China NationZ

Network Connectivity

The server includes:

• 2 x 1 GbE LOM embedded network interfaces.

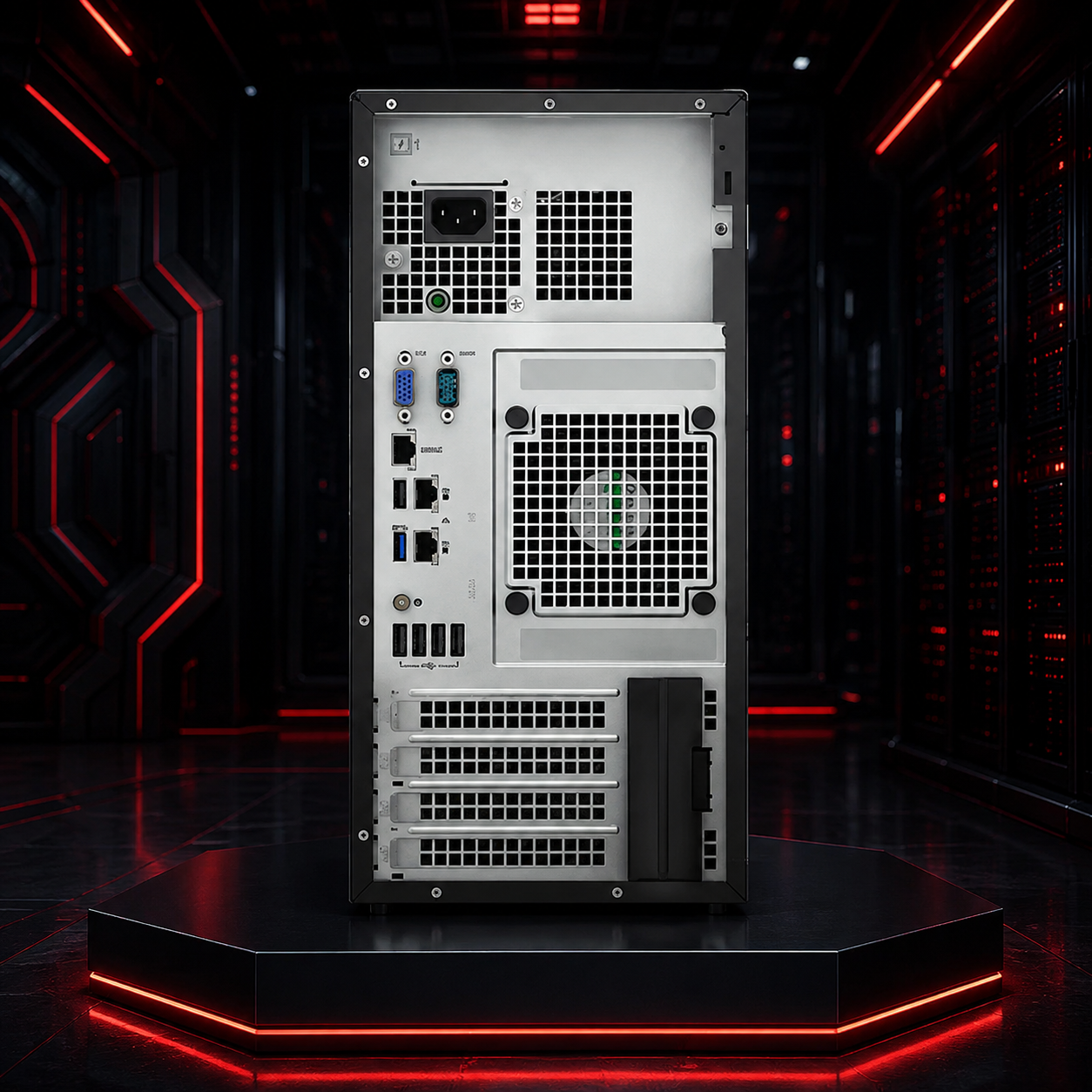

Ports

Front Ports

• 1 x iDRAC Direct Micro-AB USB port
• 1 x USB 3.0 port

Rear Ports

• 5 x USB 2.0 ports
• 1 x iDRAC Ethernet port
• 1 x USB 3.0 port
• 1 x Serial port
• 1 x VGA port

Internal Ports

• 1 x optional USB 3.0 port

PCIe Expansion Slots

The Dell PowerEdge T150 provides four PCIe expansion slots:

• 1 x16 Gen4 slot with x16 connector, full height and half length
• 1 x4 Gen4 slot with x8 connector, full height and half length
• 1 x4 Gen3 slot with x8 connector, full height and half length
• 1 x1 Gen3 slot with x1 connector, full height and half length

Bezel

The server supports a security bezel.

Operating Systems and Hypervisors

The Dell PowerEdge T150 supports several operating systems and virtualization platforms, including:

• Canonical Ubuntu Server LTS
• Citrix Hypervisor
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi

VMware ESXi support was available from December 2021.
