- Aruba CX 6100 Switch Series
The Aruba CX 6100 Switch Series is a modern family of entry-level access switches designed for enterprise branch offices, mid-market organizations, and small and medium-sized business networks.
Optimized for reliable, simple, and secure wired access, the CX 6100 Series provides the connectivity required to support users, IoT devices, wireless access points, mobile environments, and cloud-based applications.
Enterprise-Class Layer 2 Connectivity
The Aruba CX 6100 Series provides enterprise-class Layer 2 switching capabilities designed for access-layer environments.
Key networking capabilities include:
- Access Control Lists (ACLs)
- Robust Quality of Service (QoS)
- Static routing
- IPv6 support
These capabilities provide businesses with a reliable switching foundation while helping administrators control and manage network traffic.
High-Speed Uplinks
The Aruba CX 6100 Series includes convenient built-in high-speed uplink connectivity.
The series supports:
- 1GbE uplinks
- 10GbE uplinks
These uplink options provide additional bandwidth when connecting access switches to other network infrastructure.
Power over Ethernet for Connected Devices
Selected Aruba CX 6100 models provide Class 4 Power over Ethernet to support connected devices directly through Ethernet cabling.
PoE can be used to connect and power devices such as:
- Wireless access points
- Security cameras
- IoT devices
- Other compatible network endpoints
Depending on the selected model, the series provides different PoE power budgets to meet varying deployment requirements.
Flexible Management
The Aruba CX 6100 Series provides several options for configuring and managing the switching environment.
Available management approaches include:
- Cloud-based management
- On-premises management
- Command-Line Interface (CLI)
- Switch Web GUI
- AOS-CX operating system
- REST APIs
This flexibility allows organizations to select a management approach that best matches their network and operational requirements.
Aruba AOS-CX Operating System
The CX 6100 Series is based on the Aruba ASIC architecture and runs the programmable AOS-CX operating system.
AOS-CX provides a consistent operating environment across the Aruba CX switching portfolio and helps simplify network configuration and administration.
Compact and Fanless Switching
The Aruba CX 6100 Series also includes a compact 12-port model designed for environments where installation space and noise levels are important.
The fanless design allows the switch to operate quietly while still providing:
- Gigabit Ethernet connectivity
- High-speed uplinks
- Class 4 PoE
This makes the compact model suitable for offices and other quiet working environments.
Aruba CX 6100 Switch Models
The Aruba CX 6100 Series includes several fixed-configuration models covering 12-, 24-, and 48-port network requirements.
Aruba 6100 48G Class4 PoE 4SFP+ 740W Switch – R9Y04A
The Aruba 6100 R9Y04A provides:
- 48 x 10/100/1000BASE-T ports
- Class 4 PoE
- 4 x 1G/10G SFP+ uplink ports
- Up to 740W PoE power
Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch – JL675A
The Aruba 6100 JL675A provides:
- 48 x 10/100/1000BASE-T ports
- Class 4 PoE
- 4 x 1G/10G SFP+ uplink ports
- Up to 370W PoE power
- Fixed internal power supply
- Fixed fans
Aruba 6100 48G 4SFP+ Switch – JL676A
The Aruba 6100 JL676A is a 48-port non-PoE configuration.
It provides:
- 48 x 10/100/1000BASE-T ports
- 4 x 1G/10G SFP+ uplink ports
- Fixed internal power supply
- Fixed fans
Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch – JL677A
The Aruba 6100 JL677A provides:
- 24 x 10/100/1000BASE-T ports
- Class 4 PoE
- 4 x 1G/10G SFP+ uplink ports
- Up to 370W PoE power
- Fixed internal power supply
- Fixed fans
Aruba 6100 24G 4SFP+ Switch – JL678A
The Aruba 6100 JL678A provides:
- 24 x 10/100/1000BASE-T ports
- 4 x 1G/10G SFP+ uplink ports
- Fixed internal power supply
- Fixed fans
This model provides a non-PoE option for environments that require standard Gigabit Ethernet access and high-speed uplinks.

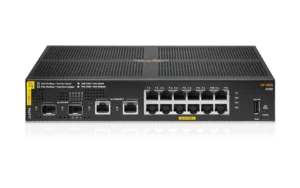

Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch – JL679A
The Aruba 6100 JL679A is a compact fanless switch designed for smaller and quieter deployment environments.
It provides:
- 12 x 10/100/1000BASE-T ports
- 2 x 1G/10G SFP+ ports
- 2 x 1G ports
- Class 4 PoE
- Up to 139W PoE power
- Fixed internal power supply
- Fanless operation
Switching Performance
The Aruba CX 6100 Series provides switching performance of up to:
- 176 Gbps system switching capacity
- 98.6 Mpps system throughput
Performance varies depending on the selected switch model and configuration.
Management Ports
Available management connectivity includes:
- 1 x USB-C console port
- 1 x USB Type-A host port
Flexible Access Switching for Business Networks
The Aruba CX 6100 Switch Series provides organizations with a range of fixed Layer 2 access switches covering different port densities, PoE requirements, and deployment environments.
With 12-, 24-, and 48-port configurations, built-in 1/10GbE uplinks, Class 4 PoE options, AOS-CX management, and a compact fanless model, the series provides a flexible access switching platform for branch offices, enterprise environments, and SMB networks.
