- Cisco Catalyst PON Series
The Cisco Catalyst PON Series provides a Passive Optical Network solution designed to deliver high-speed data, voice, and video services over fiber infrastructure.
Based on Gigabit Passive Optical Network (GPON) technology, the series uses a point-to-multipoint architecture that combines Optical Line Terminals (OLTs), Optical Network Terminals (ONTs), and passive optical components to connect end-user devices across enterprise and building networks.
The Cisco Catalyst PON Series can support different fiber deployment architectures, including Fiber-to-the-Home (FTTH), Fiber-to-the-Office (FTTO), and Fiber-to-the-Company (FTTC).
Cisco Catalyst PON Architecture
A Cisco Catalyst PON deployment mainly consists of two active components:
- Optical Line Terminal (OLT)
- Optical Network Terminal (ONT)
The OLT is positioned at the central side of the PON network and manages traffic, bandwidth allocation, and communication with connected ONTs.
The ONT is installed closer to the end-user environment and connects devices to the optical network.
Passive optical splitters are used between the OLT and ONTs, allowing a single optical fiber connection to serve multiple endpoints.
Cisco Catalyst PON OLT
The Cisco Catalyst PON Series OLT acts as the aggregation point of the optical network.
Its primary functions include:
- Traffic scheduling
- Buffer management
- Bandwidth allocation
- Managing voice, video, and data traffic
- Sending downstream traffic to connected ONTs
- Receiving upstream traffic from ONTs
A Cisco Catalyst PON OLT can support up to 128 ONTs per PON port.

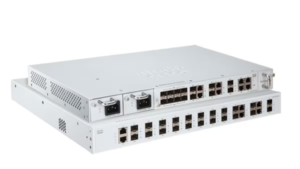

Cisco Catalyst PON OLT Models
CGP-OLT-8T
The Cisco Catalyst CGP-OLT-8T provides:
- 8 x PON ports
- 4 x 1G combo ports
- 2 x 10G SFP+ uplink slots
CGP-OLT-16T
The Cisco Catalyst CGP-OLT-16T provides:
- 16 x PON ports
- 4 x 1G combo ports
- 2 x 10G SFP+ uplink slots
These OLT configurations provide flexible connectivity for enterprise LAN, high-speed internet, and video-based network environments.
PON Port Performance
Cisco Catalyst PON ports support:
- Up to 2.466 Gbps downstream bandwidth
- Up to 1.244 Gbps upstream bandwidth
The PON ports use fiber connections to communicate with Optical Network Terminals across the passive optical network.
Uplink Connectivity
The Cisco Catalyst PON OLT provides several uplink options.
1G Combo Ports
The 1G combo ports combine:
- SFP fiber interfaces
- RJ-45 copper interfaces
When the SFP interface is active, the corresponding RJ-45 interface is disabled.
10G SFP+ Ports
The OLT also provides 10G SFP+ ports for higher-speed uplink connectivity.
These SFP+ modules are field replaceable and provide uplink interfaces for connecting the PON platform to the wider network infrastructure.
Cisco Catalyst PON ONT
The Cisco Catalyst PON Series ONT provides connectivity between the optical PON infrastructure and end-user devices.
The ONT receives voice, video, and data traffic from connected devices and communicates with the OLT through the optical network.
Depending on the selected model, Cisco Catalyst PON ONTs can provide:
- Gigabit Ethernet connectivity
- PoE
- USB connectivity
- Voice connectivity
- CATV connectivity
- Wireless connectivity
Cisco Catalyst PON ONT Models
CGP-ONT-1P
The CGP-ONT-1P provides:
- 1 x PON port
- 1 x 1G 10/100/1000 PoE port
CGP-ONT-4P
The CGP-ONT-4P provides:
- 1 x PON port
- 4 x 1G 10/100/1000 PoE ports
- 1 x USB Type-A port
CGP-ONT-4PV
The CGP-ONT-4PV provides:
- 1 x PON port
- 4 x 1G 10/100/1000 PoE ports
- 1 x USB Type-A port
- 2 x FXS ports
CGP-ONT-4PVC
The CGP-ONT-4PVC provides:
- 1 x PON port
- 4 x 1G 10/100/1000 PoE ports
- 1 x USB Type-A port
- 2 x FXS ports
- 1 x CATV port
CGP-ONT-4TVCW
The CGP-ONT-4TVCW provides:
- 1 x PON port
- 4 x 1G 10/100/1000 ports
- 2 x FXS ports
- 1 x USB Type-A port
- 1 x CATV port
- 802.11ac wireless support
Triple-Play Services
Depending on the selected ONT model and network configuration, the Cisco Catalyst PON Series can support triple-play services including:
- High-Speed Internet (HSI)
- Voice over IP (VoIP)
- IPTV
- RF overlay video services
This allows data, voice, and video traffic to be delivered through the same optical network infrastructure.
Cisco Catalyst PON Manager
The Cisco Catalyst PON Manager provides centralized management for Cisco Catalyst PON devices.
It uses a graphical management interface designed to simplify the monitoring and administration of distributed PON infrastructure.
Key management capabilities include:
- Centralized device management
- Network topology visualization
- Device discovery
- Network monitoring
- Failure detection
- Resource analysis
- Network planning
The Cisco Catalyst PON Manager operates using a client-server architecture and runs on Microsoft Windows.
Centralized PON Network Management
Through Cisco Catalyst PON Manager, administrators can centrally manage distributed broadband access devices and gain improved visibility into the PON infrastructure.
The platform can help network teams monitor device status, identify potential network issues, analyze network resources, and simplify ongoing network operations.
